VRLA Battery

Maintenance Free & non-spillable sealed construction.
Advanced AGM technology ensures maintenance free operation.

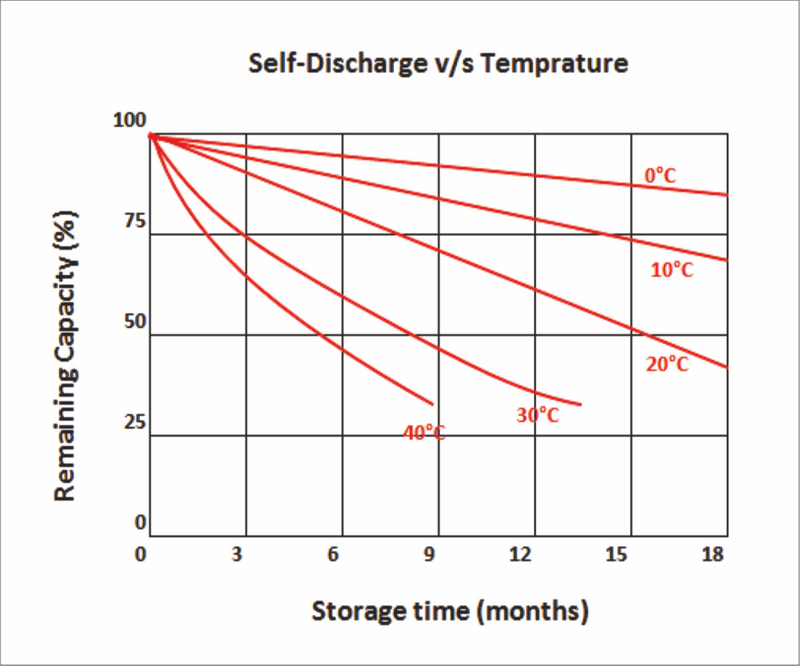

Usage of high Grade pure Raw Materials ensures low self discharge and long shelf life characteristics.
Low internal resistance and efficient discharge characteristics.
Sealed construction of the battery allows perfect operation in any position.

TECHNICAL SPECIFICATION

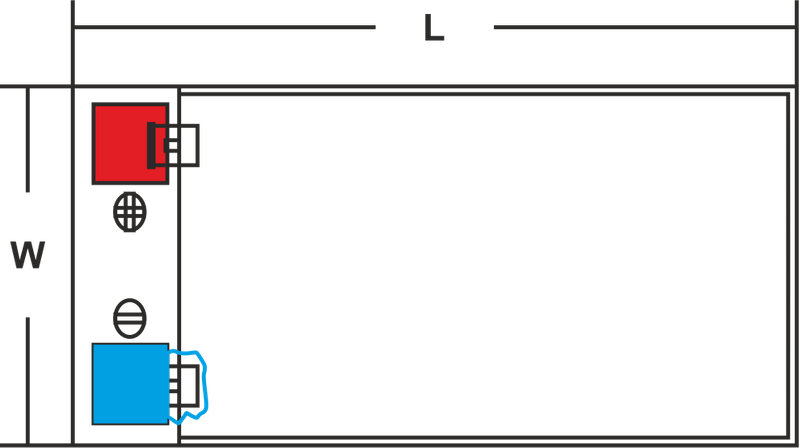

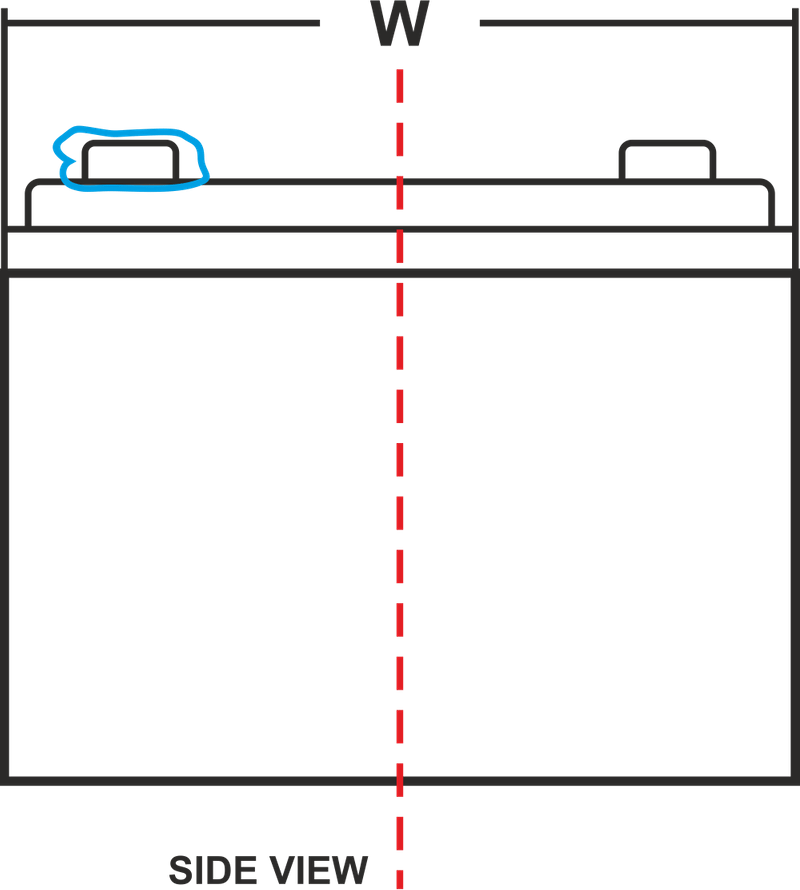

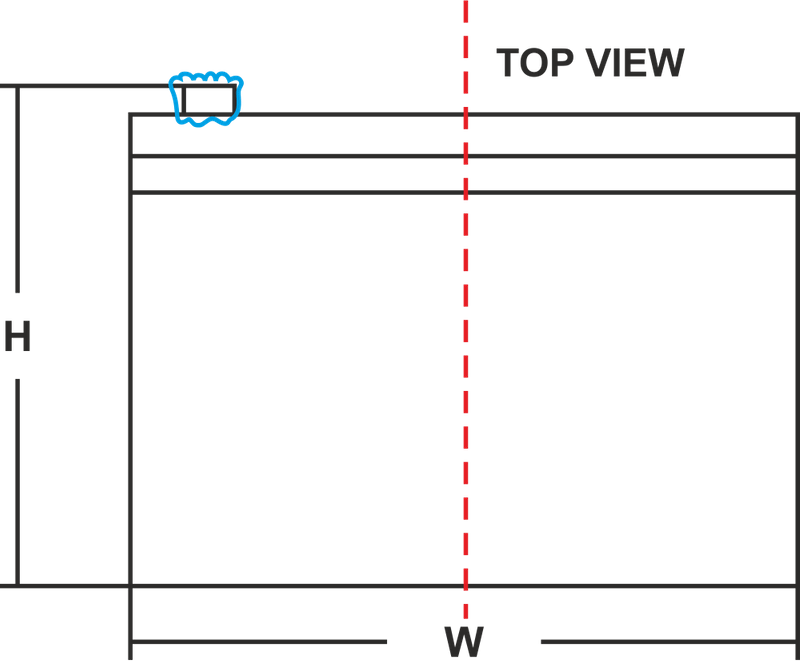

Model	Voltage (Volts)	Capacity in AH at 27°C(@20 Hr.)	Dimensions in mm (±3 mm)			Maximum	Charging Voltage
Model	Voltage (Volts)	Capacity in AH at 27°C(@20 Hr.)	L	W	H	Charging Current(A)	Stand by Use(V)	Cycle Use(V)

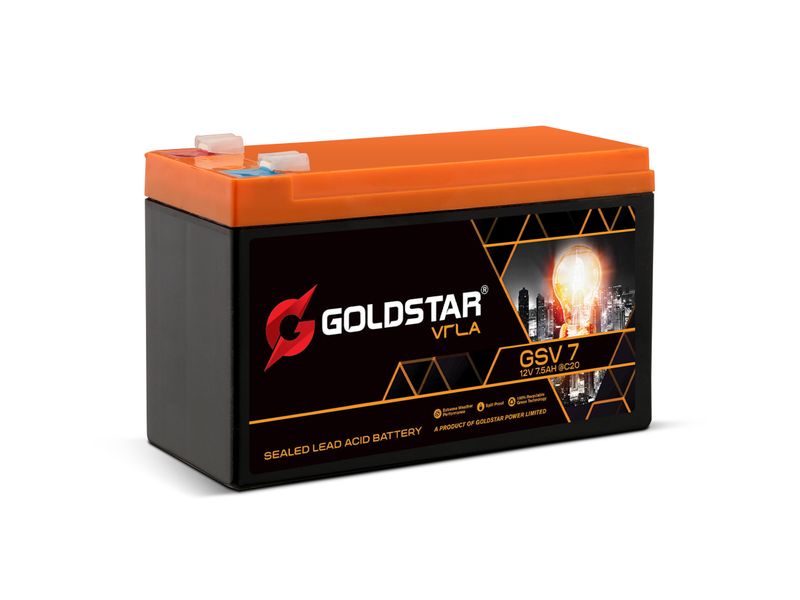

GSV 7.0	12	7.5	152	65	100	1.5	13.5 to 13.8 V at 27° C (80° F)	14.1 to 14.4 V at 27° C (80° F)

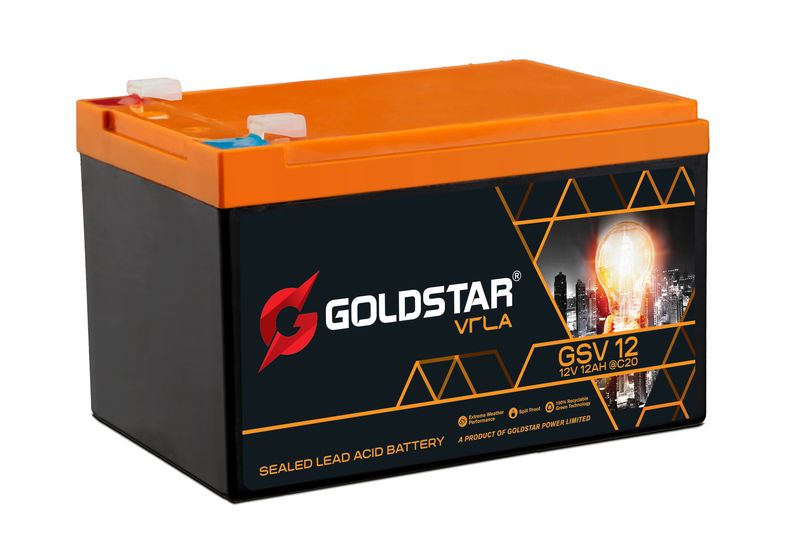

GSV 12	12	12	152	99	100	2.4	13.5 to 13.8 V at 27° C (80° F)	14.1 to 14.4 V at 27° C (80° F)

Model	Voltage (Volts)	Capacity in AH at 27°C(@20 Hr.)	Discharge characteristic in Amps
Model	Voltage (Volts)	Capacity in AH at 27°C(@20 Hr.)	C 20 to 10.5 V	C 10 to 10.5 V	C 5 to 10.5 V	C 3 to 10.5 V	C 1 to 10.5 V
GSV 7.0	12	7.5	0.37	0.71	1.3	1.9	4.7
GSV 12	12	12	0.6	1.14	2.0	3.0	7.6
